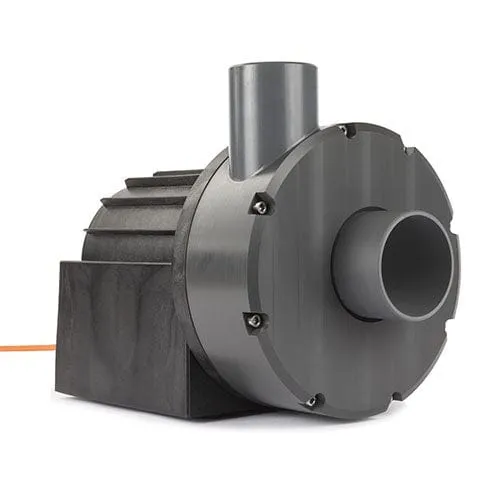

The innovative Abyzz A1200IPU pump with titanium rotor consists of a programmable, high-performance, menu-driven, splash-water protected electronics (driver) and a sinusoidal-commutated synchronous motor (pump).

The high efficiency of the motor makes the pump, in conjunction with the adjustable to your power requirements speed, an energy-saving solution. The integrated bearing rinse offers optimum protection against calcification and, in conjunction with the silicon carbide bearings used and a special carbide shaft, ensures low-maintenance operation.

The processed materials are designed for a long service life and meet the highest requirements and quality standards. The product is developed and produced in Germany by venotec.

Special features

• Adjustable speed range (0 to 100%)

• Programmable control (e.g wave and random mode)

• Extensive protection against e.g. dry running, overtemperature and overcurrent

• Smooth start

• Bus-compatible interface for peripheral devices

• Lockable plug contacts

• Low noise operation

• Motor operating voltage 12V

• Swivel motor base

Applications

• Freshwater and saltwater aquaristics

• Pond filter systems

• streams

Delivery

• Abyzz A1200IPU MP Cable length 3.0m or 10.0m with range extender

• Driver A1200 IPU splash-water protected

• Power cable (1.5 m) and connecting cable

Installation either submerged or dry in piping, not self-priming.

The inlet / outlet connections are suitable for PVC / ABS adhesive fittings.

Additional Information

Weight	NA
Dimensions	378 × 304 × 250 mm
Maximum flow rate	48000 L/Hr
Rated flow rate	68000 L/Hr
Delivery height	12.5 meters
Operating pressure (max.)	1.2 Bar
Immersion depth (max.)	2.0 Meter
Inlet/outlet connections	90 / 75mm
Line Length (Pump)	3.0 Meter (10M Option Available at extra cost)
Power consumption	5 - 1200W
Operating voltage	100-240V; 50-60Hz
Ambient temperature	1 °C - 50 °C
